Wall Reinforcing Systems

Wall Reinforcing Systems

Carbon Fiber Wall Reinforcement Installation Near Albany, Schenectady, Troy

Proven repair for bowing, cracked basement walls

Super-strong strips. The CarbonArmor® system utilizes epoxy and carbon fiber strips to strengthen and stabilize foundation walls that are cracked or bowed.

Our CarbonArmor® Wall Reinforcing System uses stronger-than-steel materials to repair foundation walls

What it does:

The CarbonArmor® Wall Reinforcing System, developed by Supportworks, is a state-of-the-art solution used to fix cracked and bowing foundation walls.

CarbonArmor® reinforces and stabilizes basement walls utilizing the same technology used by the U.S. Department of Defense, Army Corps of Engineers and aerospace engineers to reinforce bomb shelters, skyscrapers and bridges.

Product Features

  • Made from fiber-reinforced polymer that's 10-times stronger than steel
  • Specifically designed to reinforce & stabilize basement walls
  • High-strength epoxy resin absorbs pressure from the wall
  • Requires no outside digging
  • Most installations completed in less than one day

Foundation wall cracks and bowing basement walls are signs that your foundation is in need of repair. Our carbon fiber basement wall repair solutions can help reinforce your bowing walls and repair cracks.

Foundation cracks and bowing are serious problems that will worsen over time if not corrected. The experienced foundation repair specialists at Adirondack Basement Systems can determine what conditions are causing this foundation damage.

By accurately diagnosing the cause of the foundation problem, we can determine if carbon fiber wall reinforcement is the best solution for your foundation.


Free Estimates for Basement Wall Reinforcement in NY
Schedule A Free Estimate

When it comes to repairing foundations, Adirondack Basement Systems are the experts! Contact us today to schedule a Free Estimate for foundation wall repair in Albany, Schenectady, Troy and nearby!

The sooner you repair damaged foundation walls, the better

Signs of foundation damage are usually easy to spot. Foundation walls built from concrete block typically crack along joint lines between blocks, forming a horizontal crack near the mid point of the wall and "stair step" cracking at the corners.

Cracks in poured concrete walls often display diagonal cracking extending from the bottom corners of the wall towards the top center. With either type of foundation, cracks can be accompanied by sections of wall that bow or tip inward.

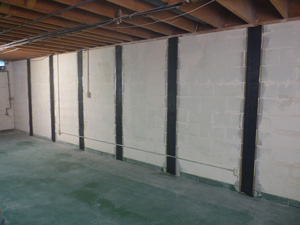

CarbonArmor® Strip preparing to be installed in Saratoga Springs CarbonArmor® Strip applied to wall in Colonie CarbonArmor® installed in Albany

Super strong, but nearly invisible. After cleaning the wall to ensure good adhesion, the technician masks off each carbon fiber strip location and saturates the masonry with epoxy. The CarbonArmor® reinforcement becomes part of the wall structure, and can be hidden with a coat of paint.

Carbon fiber straps and epoxy make a low-profile repair

Once our foundation repair specialists know how many carbon fiber strips will be required to properly reinforce the wall, the installation process goes quickly. High-strength epoxy is used to adhere the CarbonArmor® strips to the wall and to enhance each strip's strength. Once the repair is complete, the strips will "disappear" when the entire wall gets a coat of paint.

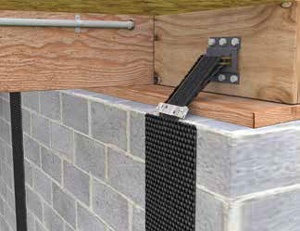

ArmorLock® Installed in Albany, Schenectady, Troy

Stop inward wall movement. The ArmorLock® system consists of straps and brackets that connect CarbonArmor® reinforcement strips to the building's perimeter framing.

We install the CarbonArmor® foundation wall reinforcement system in Albany

Solve tilting wall problems with CarbonArmor® & ArmorLock®

When soil pressure is causing the top of the foundation wall to tilt inward, extra reinforcement is required.

This is where the ArmorLock® system can come to the rescue. ArmorLock® is designed to be used in combination with CarbonArmor® reinforcement.

With the ArmorLock® system, a super-strong carbon fiber strap is fused to each ArmorLock® strip and anchored to a heavy-duty steel bracket that's lag-screwed to the rim joist.

Locking the foundation wall to the rim joist will prevent soil pressure from pushing the top of the wall inward, away from this perimeter framing.

Because the ArmorLock® system takes up very little space, there's usually no need to relocate ductwork and other basement equipment.

CarbonArmor® Wall Repair in Amsterdam, Gloversville, Delmar, Gansevoort, Glens Falls

The experts at Adirondack Basement Systems use CarbonArmor® strips to reinforce a repaired crack in a foundation wall.

ArmorLock Carbon Fiber Ancchorage System

Use CarbonArmor® wall stitches to reinforce wall crack repairs

A cracked foundation wall can be repaired using polyurethane injection, epoxy or patching mortar to fill and seal the crack.

Whichever technique is used, the repair can be reinforced using CarbonArmor® strips in a wall stitch repair.

Your Adirondack Basement Systems technician will epoxy a series of strips across the crack, significantly improving the overall stability of the wall.

To make a solid crack repair even stronger and more stable, you can't beat the performance offered by CarbonArmor® wall stitches.

Make sure your home is supported by a stable foundation with carbon fiber reinforcement solutions from Adirondack Basement Systems

We specialize in a variety of permanent solutions for stabilizing the foundation, repairing wall cracks, and straightening bowing basement walls. Don't wait until the problem gets worse. Contact Adirondack Basement Systems at 1-518-348-5767 to speak with our team of experts or contact us online and schedule an inspection and estimate for reinforcing your foundation.
